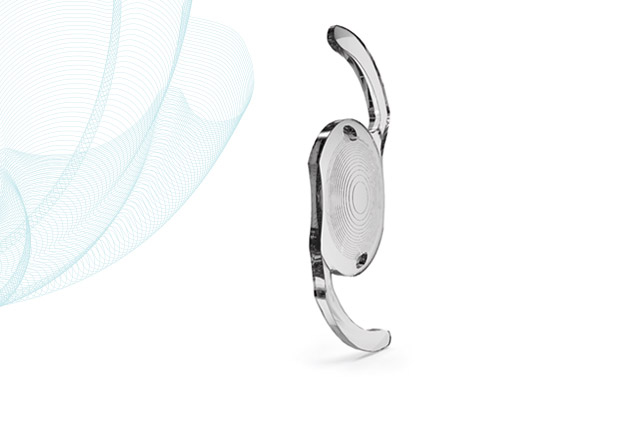

REVERSO ® MULTIFOCAL

Description

MULTIFOCAL HYDROPHILIC LENS Piggy-back

DESIGNATION TECHNICAL SPECIFICATIONS
Lens Type For implantation into the ciliary sulcus, in pseudophakic patients
Implantation location Ciliary sulcus
Optic Diameter 6.50 mm
Overall diameter 13.80 mm
Design One piece square edge on 360°
Optic design Multifocal
Spherical
Convex anterior surface, diffractive pattern on the concave posterior surface
Angulation 10°
Material Hydrophilic Benz 25 made of hydrophilic and hydrophobic copolymers
Multifocal features Light distribution: 65% far & 35% near
Steps apodization: from Ø 3.0 mm to Ø 4.5 mm
Dioptric powers From -3.0D to +3.0D by 0.5D
Addition (at IOL plane) +1.50D / +2.00D / +2.50D / +3.00D / +3.50D
A-Constant Not applicable
Refractive index 1.46
Sterilization Steam
Recommended injection system Single-use injector
Recommended incision size 1.8 to 2.2 mm

Download the brochure
