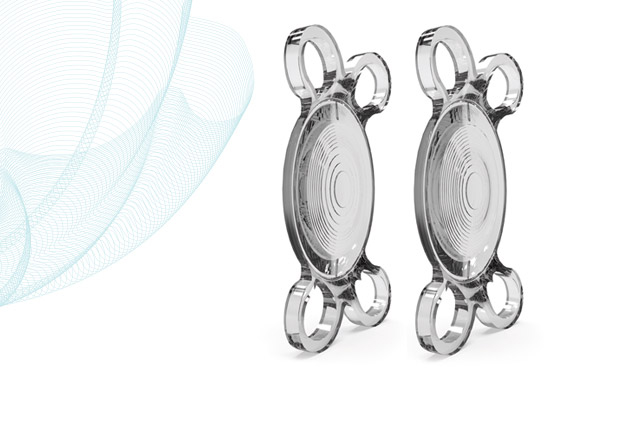

ARTIS SYMBIOSE® TORIC
Description
TORIC MULTIFOCAL HYDROPHOBIC LENSES Preloaded
| DESIGNATION | TECHNICAL SPECIFICATIONS |
|---|---|
| Lens Type | For implantation in the capsular bag |
| Optic diameter | 6.00 mm (from +10.0D to +25.0D) 5.80 mm (from +25.5D to +35.0D) |
| Overall diameter | 10.79 mm (de +10.0D à +25.0D) 10.50 mm (de +25.5D à +35.0D) |
| Optic design | Diffractive multifocal extended depth of focus with binocular complementarity Aspherical with negative spherical aberration to partly correct corneal spherical aberration Diffractive pattern on the anterior face, toxicity and marks on the posterior face, biconvex |
| Angulation | 5° |
| Material | Hydrophobic CBK 1.8 from Cristalens |
| Dioptric powers (spherical equivalent) | From + 10.0D to + 35.0D by 0.5D |
| Addition (at IOL plane) | MID: Superior intermediate vision - PLUS: Superior near vision |
| Cylinder powers | +0.75D / +1.50D (+2.25D / +3.00D / +3.75D available upon request |
| Estimated A-Constant (SRK-T) | 119.3 Ultrasound biometry 119.7 Interference laser biometry |
| Suggested anterior chamber depth (ACD) | 5.77 mm Ultrasound biometry 6.03 mm Interference laser biometry |
| Refractive index | 1.54 |
| Sterilization | Ethylene oxide |
| Injection system | Preloaded system |
| Recommended incision size | 2.0 mm |
