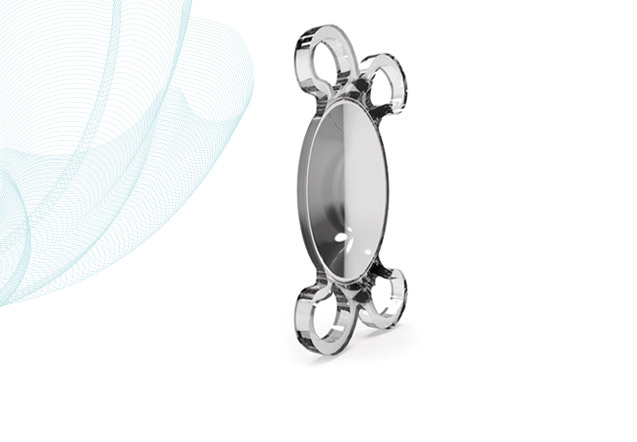

ARTIS PL E
Description
HYDROPHOBIC ACRYLIC
HYDROPHOBIC ACRYLIC
Preloaded - Micro incision
| DESIGNATION | TECHNICAL SPECIFICATIONS |
|---|---|
| Lens Type | For implantation in the capsular bag |
| Optic Diameter | 6.15 mm (from 0.0D to +9.5D) 6.00 mm (from +10.0D to +25.0D) 5.80 mm (from +25.5D to +35.0D) |
| Overall diameter | 11.00 mm (from 0.0D to +9.5D) 10.79 mm (from +10.0D to +25.0D) 10.50 mm (from +25.5D to +35.0D) |
| Design | One piece square edge on 360° |
| Optic design | Aspherical on the posterior surface Compensation of corneal aberrations |
| Angulation | 5° |
| Material | Hydrophobic acrylic for micro-incision |
| Dioptric powers | From 0.0D to +35.0D by 0.5D |
| Estimated A-Constant (SRK-T) | 119.3 Ultrasound biometry 119.7 Interference laser biometry |
| Suggested Anterior Chamber Depth (ACD) |
5.77 mm Ultrasound biometry 6.03 mm Interference laser biometry |
| Refractive index | 1.54 |
| Sterilization | Ethylene oxide |
| Recommended incision size | 2.0 mm |
