CRISTALENS | MULTIFOCAL HYDROPHOBIC LENSES WITH A DUAL-LENS STRATEGY

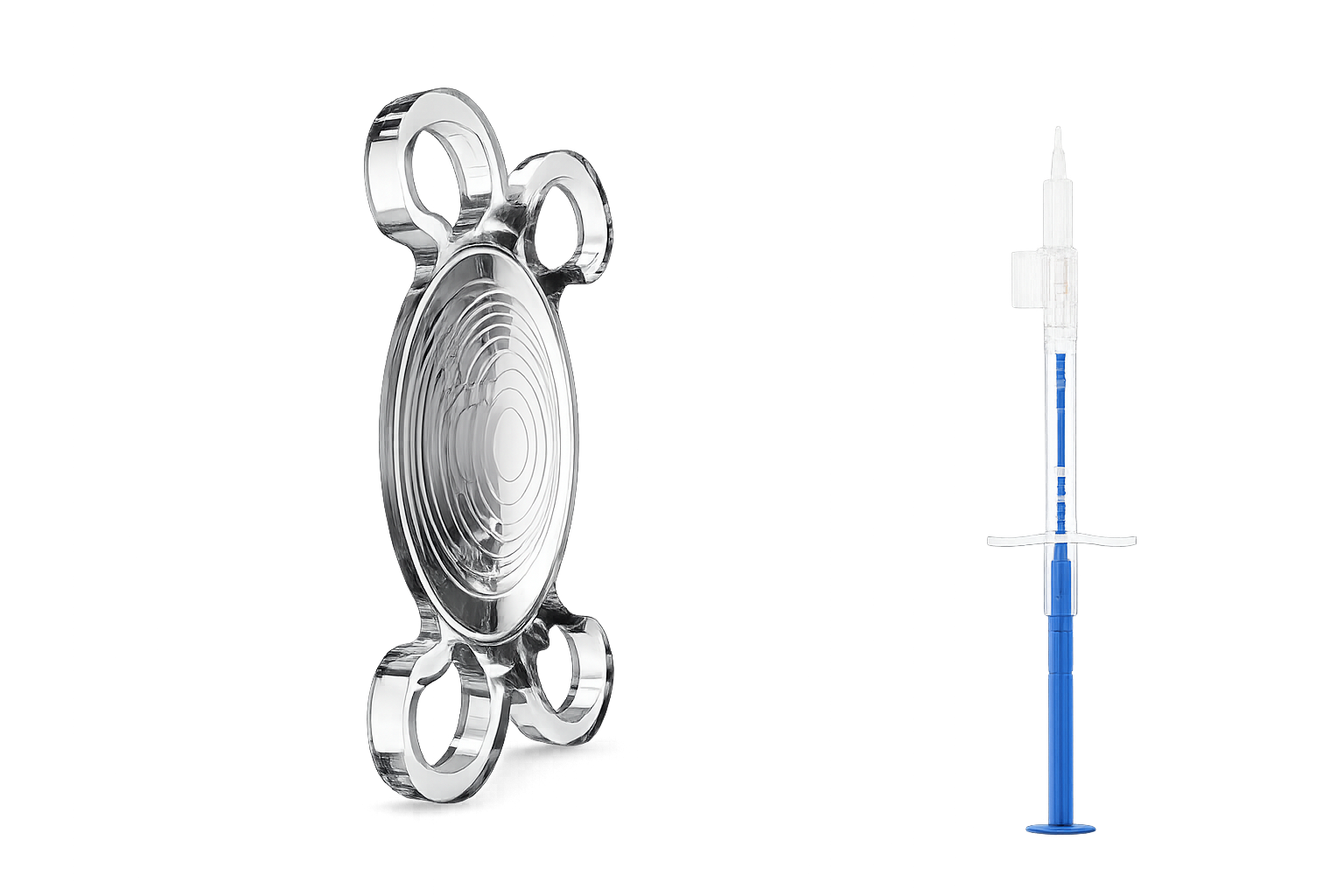

ARTIS® PL M
Lens type
For implantation in the capsular bag
Optic diameter
6.00 mm (from +10.0D to +25.0D)
5.80 mm (from +25.5D to +35.0D)
5.80 mm (from +25.5D to +35.0D)
Overall diameter
10.79 mm (from +10.0D to +25.0D)
10.50 mm (from +25.5D to +35.0D)
10.50 mm (from +25.5D to +35.0D)
Design
One-piece square edge on 360°
Optic design
Bifocal
Aspherical with negative spherical aberration to partly correct corneal spherical aberration
Diffractive pattern on the anterior surface, biconvex
Aspherical with negative spherical aberration to partly correct corneal spherical aberration
Diffractive pattern on the anterior surface, biconvex
Angulation
5°
Material
Hydrophobic CBK 1.8 from Cristalens
Dioptric powers
From +10.0D to +35.0D by 0.5D
Addition (at IOL plane)
+2.50D / +3.00D
Estimated A-Constant (SRK-T)
119.3 Ultrasound biometry
119.7 Interference laser biometry
119.7 Interference laser biometry
Suggested anterior chamber depth (ACD)
5.77 mm Ultrasound biometry
6.03 mm Interference laser biometry
6.03 mm Interference laser biometry
Refractive index
1.54
Sterilization
Ethylene oxide
Injection system
Preloaded system
Recommended incision size
2.0 mm
